除了大面積散熱片與金屬底板,幾處關鍵插槽也使用強化料件來提升耐用性。

Z590 Aorus Master 市場參考價格仍然釘在 15,990 元,和 ROG Maximus XIII Hero 屬於同一量級競爭產品,因此性能實測體驗階段,將採用一樣的配備與設定組態。

延伸閱讀:

升級 18 + 1 相供電、Wi-Fi 6E 與 10G 網路,GIGABYTE Z590 Aorus Master 開箱

首先來看 UEFI BIOS,GIGABYTE 前幾年大改了設計配置,大家應該有感到更加滿意吧!處理器、記憶體相關項目全整合在 Tweaker 群組內,可以調整時脈、電壓、諸多附加功能、XMP 與記憶體相關等項目,另外版本更新之後的 UEFI BIOS 也將會有 ABT 選項。

Settings 群組是掌控晶片組與堆疊功能裝置,I/O Ports 所提供彈性還有改善空間,像內建整合的 Wi-Fi 模組就無法將它關閉之。當然了,只要習慣整體設計配置邏輯,所想要的核心設定目的都不難達成,並不至於成為擠壓出最佳性能組態的阻礙。

GIGABYTE Z590 Aorus Master - UEFI (5)
GIGABYTE Z590 Aorus Master - UEFI (6)
GIGABYTE Z590 Aorus Master - UEFI (7)
GIGABYTE Z590 Aorus Master - UEFI (8)
GIGABYTE Z590 Aorus Master - UEFI (9)
GIGABYTE Z590 Aorus Master - UEFI (10)
GIGABYTE Z590 Aorus Master - UEFI (11)
GIGABYTE Z590 Aorus Master - UEFI (12)
GIGABYTE Z590 Aorus Master - UEFI (13)
GIGABYTE Z590 Aorus Master - UEFI (1)
GIGABYTE Z590 Aorus Master - UEFI (2)
GIGABYTE Z590 Aorus Master - UEFI (3)
GIGABYTE Z590 Aorus Master - UEFI (4)
GIGABYTE Z590 Aorus Master - UEFI (5) GIGABYTE Z590 Aorus Master - UEFI (6) GIGABYTE Z590 Aorus Master - UEFI (7) GIGABYTE Z590 Aorus Master - UEFI (8) GIGABYTE Z590 Aorus Master - UEFI (9) GIGABYTE Z590 Aorus Master - UEFI (10) GIGABYTE Z590 Aorus Master - UEFI (11) GIGABYTE Z590 Aorus Master - UEFI (12) GIGABYTE Z590 Aorus Master - UEFI (13) GIGABYTE Z590 Aorus Master - UEFI (1) GIGABYTE Z590 Aorus Master - UEFI (2) GIGABYTE Z590 Aorus Master - UEFI (3) GIGABYTE Z590 Aorus Master - UEFI (4)

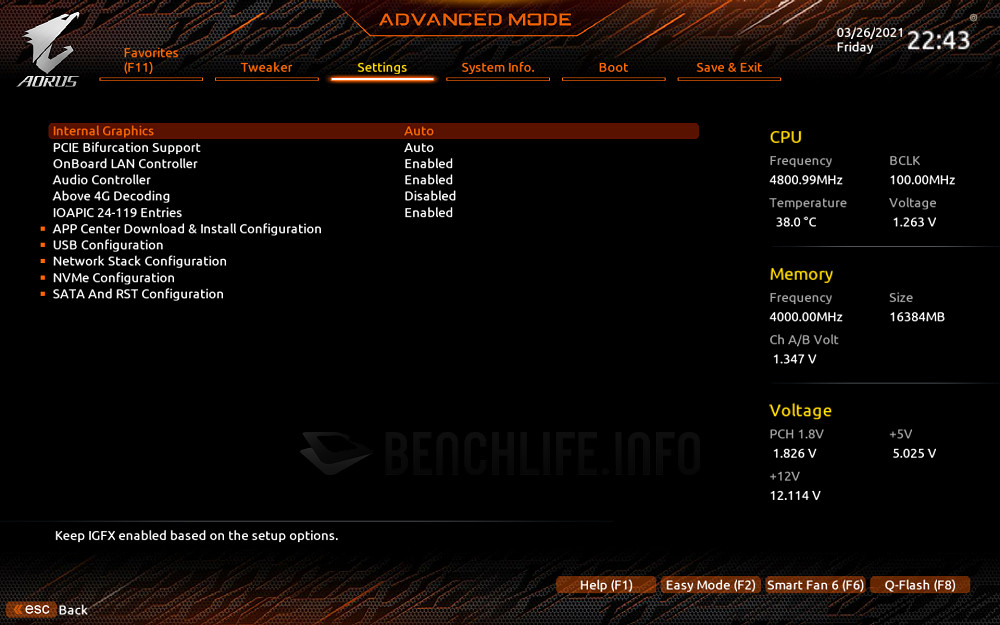

在 Settings 群組底下還有個 APP Center Download & Install Configuration 選項,安裝好作業系統初次開機就會蹦出前導程式,方便後續快速安裝驅動程式與諸多附加軟體。GIGABYTE 自家附加功能軟體,與核心相關的包含 EasyTune、SIV,燈效控也別漏掉 RGBFusion。

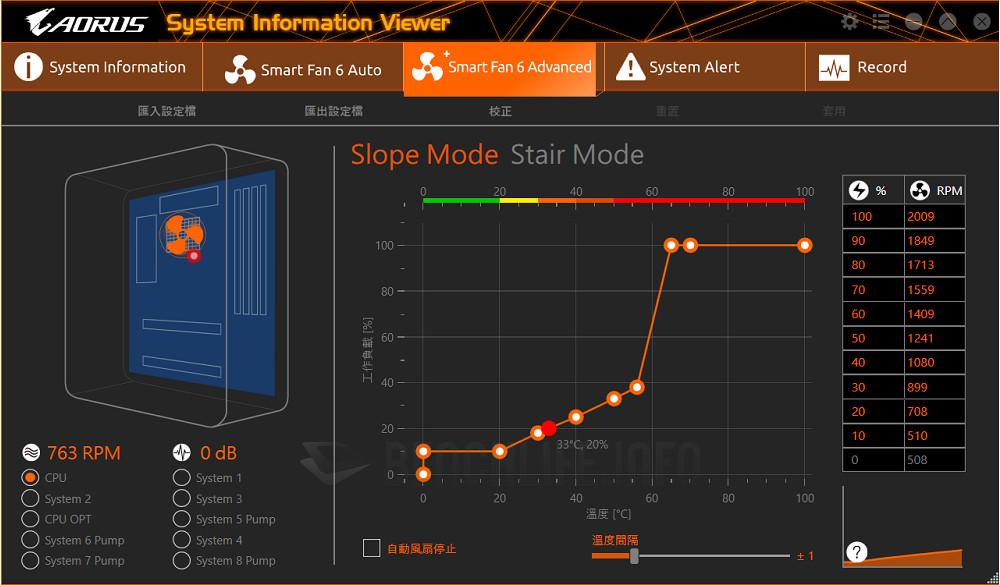

EasyTune 能夠與 UEFI BIOS 連動,自選節能、預設、超頻運作組態,或者進一步手動調整處理器時脈、電壓、供電限制,還有記憶體等部分。如果有前項需求,那麼 SIV 理應當也務必安裝,裡面 Smart Fan 6 等項目如其名,方便套用散熱情境組態、手動細部調整。

GIGABYTE Z590 Aorus Master - Software (12)
GIGABYTE Z590 Aorus Master - Software (13)
GIGABYTE Z590 Aorus Master - Software (14)
GIGABYTE Z590 Aorus Master - Software (15)
GIGABYTE Z590 Aorus Master - Software (16)
GIGABYTE Z590 Aorus Master - Software (1)
GIGABYTE Z590 Aorus Master - Software (2)
GIGABYTE Z590 Aorus Master - Software (3)
GIGABYTE Z590 Aorus Master - Software (4)
GIGABYTE Z590 Aorus Master - Software (5)
GIGABYTE Z590 Aorus Master - Software (6)
GIGABYTE Z590 Aorus Master - Software (7)

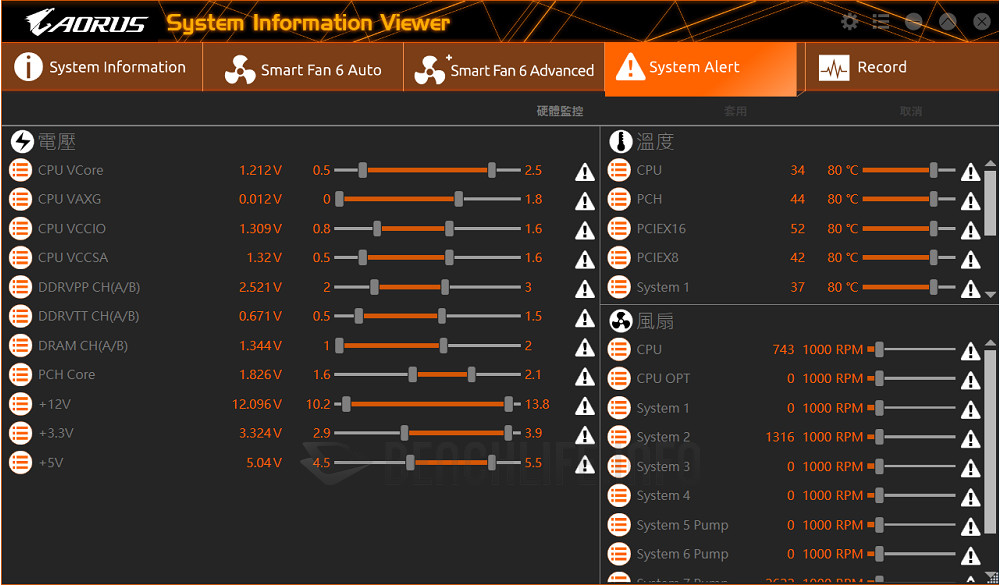

GIGABYTE Z590 Aorus Master - Software (8)

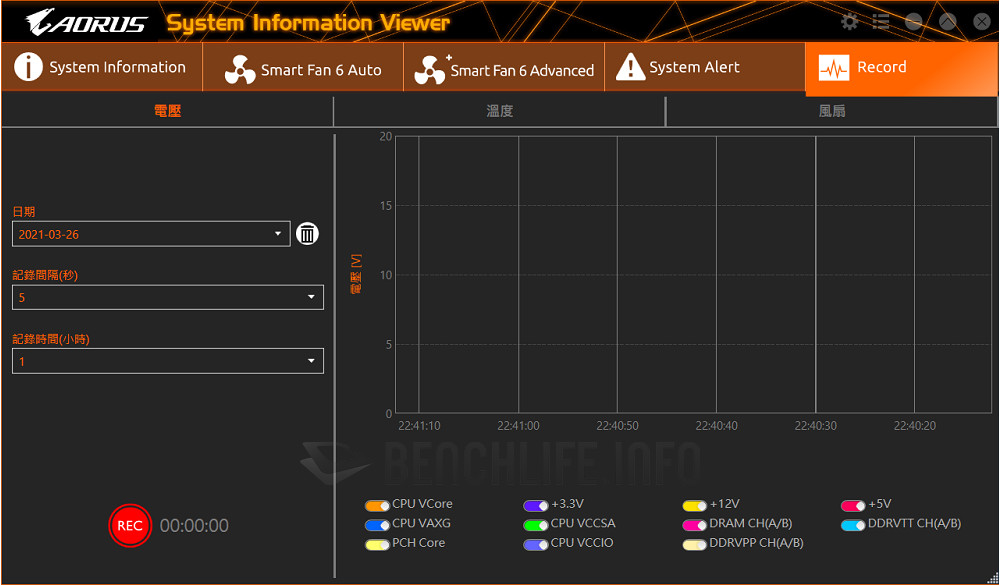

GIGABYTE Z590 Aorus Master - Software (9)

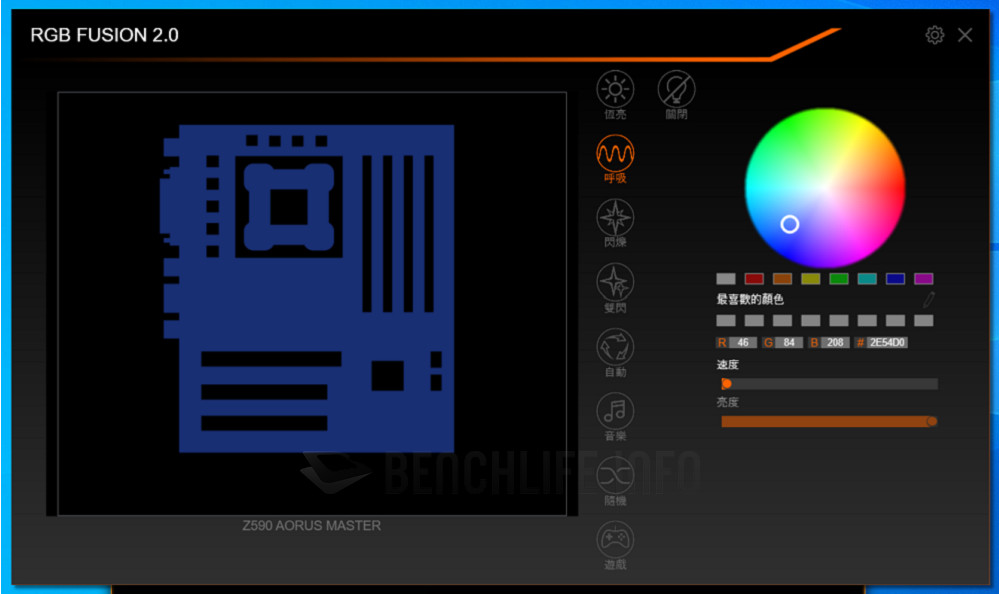

GIGABYTE Z590 Aorus Master - Software (10)
GIGABYTE Z590 Aorus Master - Software (11)
GIGABYTE Z590 Aorus Master - Software (12) GIGABYTE Z590 Aorus Master - Software (13) GIGABYTE Z590 Aorus Master - Software (14) GIGABYTE Z590 Aorus Master - Software (15) GIGABYTE Z590 Aorus Master - Software (16) GIGABYTE Z590 Aorus Master - Software (1) GIGABYTE Z590 Aorus Master - Software (2) GIGABYTE Z590 Aorus Master - Software (3) GIGABYTE Z590 Aorus Master - Software (4) GIGABYTE Z590 Aorus Master - Software (5) GIGABYTE Z590 Aorus Master - Software (6) GIGABYTE Z590 Aorus Master - Software (7) GIGABYTE Z590 Aorus Master - Software (8) GIGABYTE Z590 Aorus Master - Software (9) GIGABYTE Z590 Aorus Master - Software (10) GIGABYTE Z590 Aorus Master - Software (11)

Z590 Aorus Master 搭配 Intel Core i9-11900K 處理器,同樣裝配 360mm 一體式水冷散熱器,並透過 Intel XTU 自動最佳化倍頻配置。主要是 5~6 個核心作用條件下,倍頻統一拉高至 50x,也就是相當於全核心 5.0GHz。除了倍頻組態高於 Intel 出廠預設值,另外也換用 X.M.P. DDR4-4000 記憶體,所以簡測數據與 Rocket Lake-S 基礎性能篇相比,會稍好不等程度。

GIGABYTE Z590 Aorus Master - Benchmark (6)
GIGABYTE Z590 Aorus Master - Benchmark (1)
GIGABYTE Z590 Aorus Master - Benchmark (2)
GIGABYTE Z590 Aorus Master - Benchmark (4)
GIGABYTE Z590 Aorus Master - Benchmark (13)
GIGABYTE Z590 Aorus Master - Benchmark (12)
GIGABYTE Z590 Aorus Master - Benchmark (11)
GIGABYTE Z590 Aorus Master - Benchmark (7)
GIGABYTE Z590 Aorus Master - Benchmark (8)
GIGABYTE Z590 Aorus Master - Benchmark (9)
GIGABYTE Z590 Aorus Master - Benchmark (3)

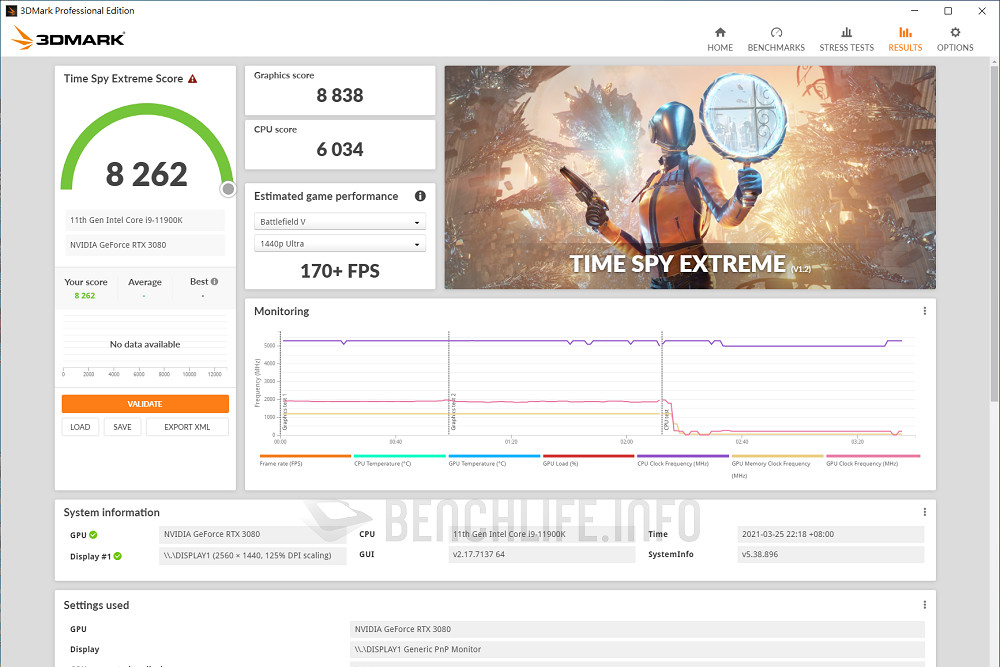

GIGABYTE Z590 Aorus Master - Benchmark (20)

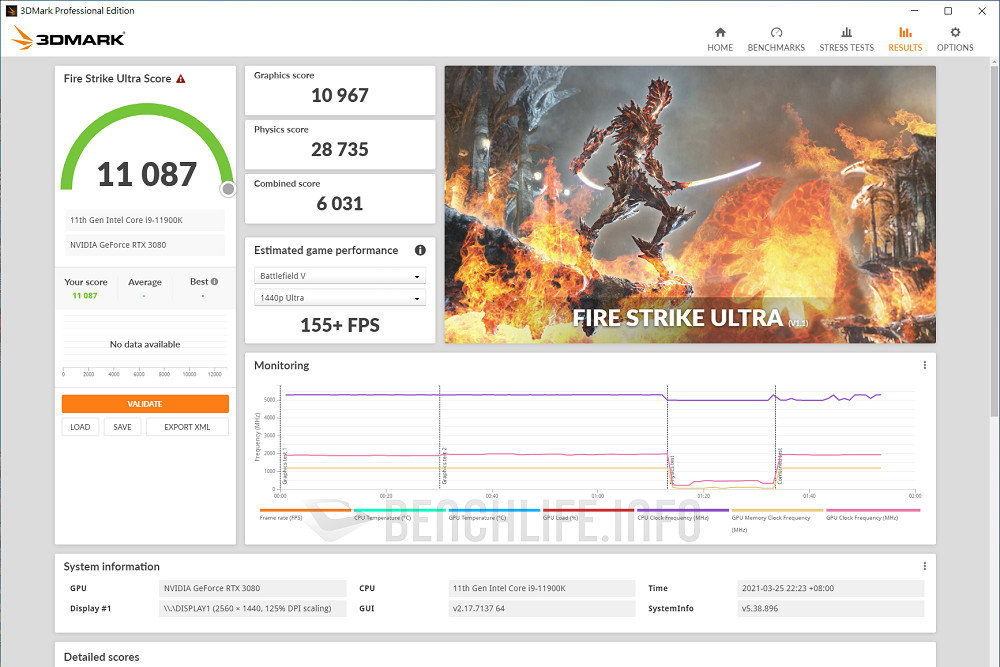

GIGABYTE Z590 Aorus Master - Benchmark (17)

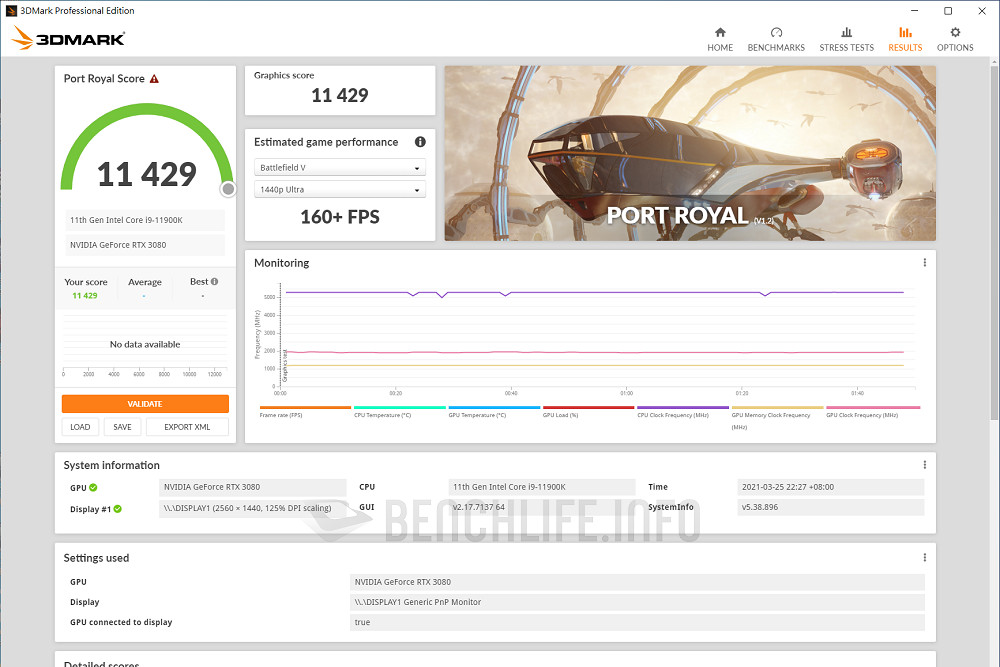

GIGABYTE Z590 Aorus Master - Benchmark (19)

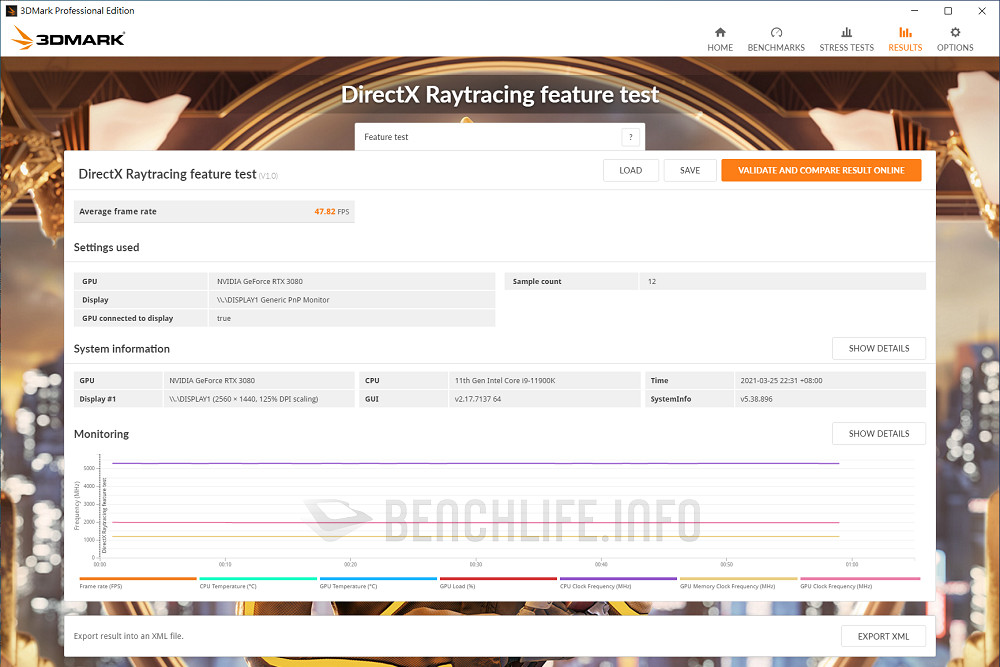

GIGABYTE Z590 Aorus Master - Benchmark (16)

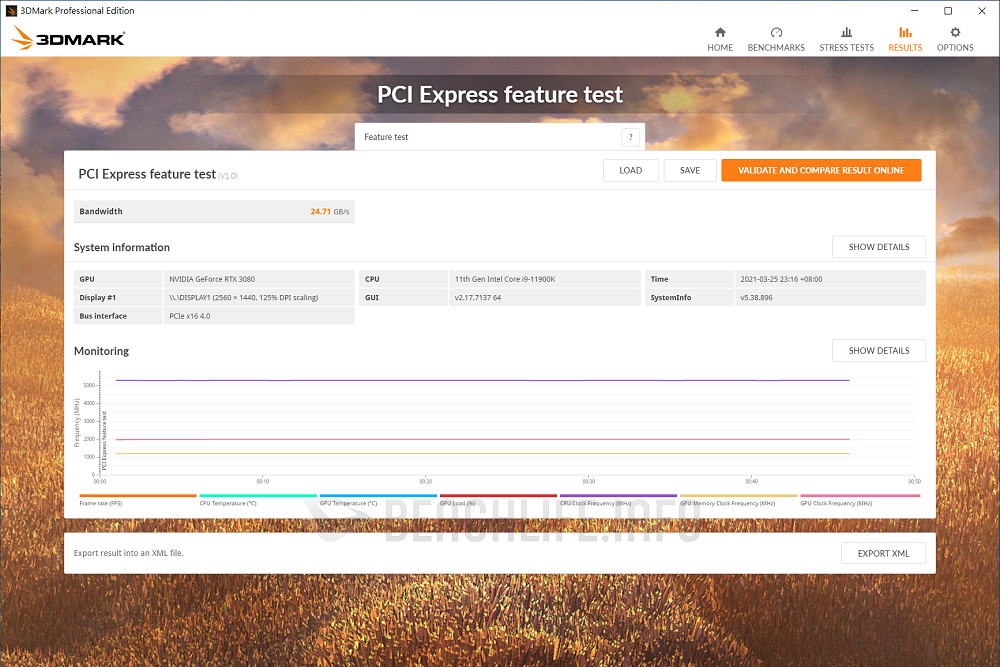

GIGABYTE Z590 Aorus Master - Benchmark (18)
GIGABYTE Z590 Aorus Master - Benchmark (10)
GIGABYTE Z590 Aorus Master - Benchmark (6) GIGABYTE Z590 Aorus Master - Benchmark (1) GIGABYTE Z590 Aorus Master - Benchmark (2) GIGABYTE Z590 Aorus Master - Benchmark (4) GIGABYTE Z590 Aorus Master - Benchmark (13) GIGABYTE Z590 Aorus Master - Benchmark (12) GIGABYTE Z590 Aorus Master - Benchmark (11) GIGABYTE Z590 Aorus Master - Benchmark (7) GIGABYTE Z590 Aorus Master - Benchmark (8) GIGABYTE Z590 Aorus Master - Benchmark (9) GIGABYTE Z590 Aorus Master - Benchmark (3) GIGABYTE Z590 Aorus Master - Benchmark (20) GIGABYTE Z590 Aorus Master - Benchmark (17) GIGABYTE Z590 Aorus Master - Benchmark (19) GIGABYTE Z590 Aorus Master - Benchmark (16) GIGABYTE Z590 Aorus Master - Benchmark (18) GIGABYTE Z590 Aorus Master - Benchmark (10)

另外附帶一提,我們額外加入 BAPCo 剛推出的 CrossMark 測試軟體,由於時間因素所以沒能讓已完成的處理器篇進行補測。CrossMark 設計立意是快速評估系統性能與響應速度,遠比以往的 SYSMark 節省無數倍時間、系統環境設置要求也少非常多,它是藉由在真實應用軟體上建立模擬測試基準,來提供生產率、創造力、響應等參考評價分數 / 參考指標。

測試平台

  • 處理器:Intel Core i9-11900K
  • 記憶體:Crucial Ballistix Elite DDR4-4000 16GB Kit(2 x 8GB)
  • 顯示卡:ASUS TUF Gaming GeForce RTX 3080 OC Edition
  • 系統碟:GIGABYTE AORUS NVMe Gen4 SSD 1TB
  • 作業系統:Microsoft Windows 10 Pro 64bit(20H2)

GIGABYTE 極盡可能為 Z590 Aorus Master 堆料,除了供電還有諸多的強化插槽設計,以及把玩時可能會用到細項配置,都是相當豐富。其餘亮點包含整合 10GbE 控制器,音效設計等級也能夠記上一筆,另外硬、韌、軟體整合使用體驗同樣有達到相當水準。當採購預算達到 15,990 元這個級距時,是值得列入參考清單內,就合乎你的需求、喜好與否。
